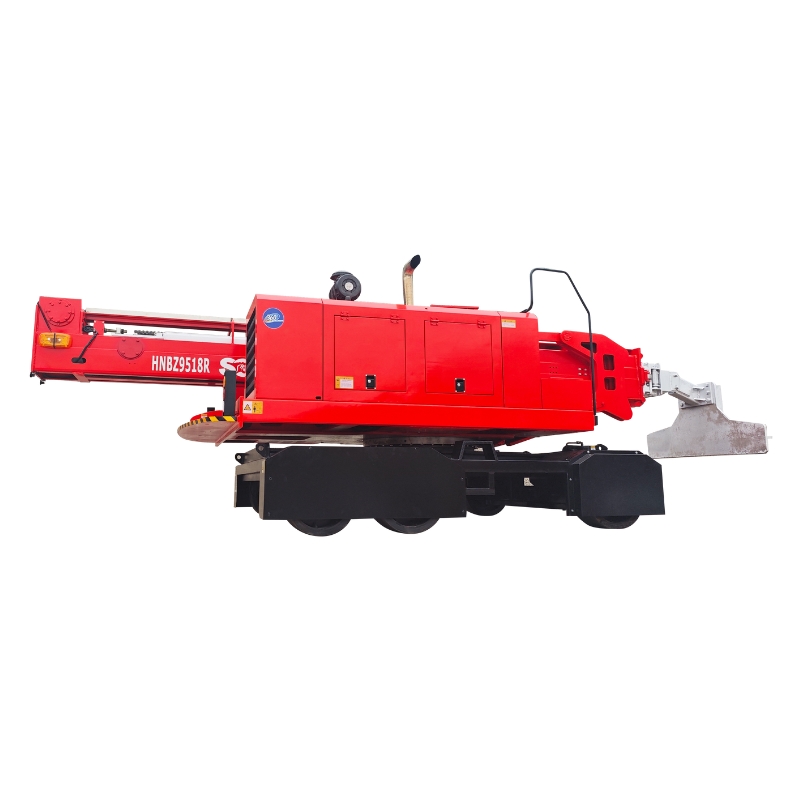

SOCMA HNBZ9518R Furnace-Tending Vehicle For Steel Mills and Foundries

Product Description

The SOCMA HNBZ9518R Furnace-Tending Vehicle is designed for tending furnaces in steel mills and foundries, featuring a customizable 6000mm-12000mm boom arm extension, an 18-ton operating weight, and a single-structure slag boom arm. It excels at handling molten materials and debris in high-heat environments.

Equipped with a four-wheel drive and four-wheel steer system, the HNBZ9518R provides excellent traction and maneuverability in rugged, heat-intensive conditions. Its hydraulic brake system and adjustable boom arm tilt speed enhance safety and operational flexibility.

Powered by an OSB4.5-C130/1104D-E44TA diesel engine, the HNBZ9518R delivers reliable performance with low emissions. The cab includes heat-resistant materials, ergonomic controls, and high-temperature air conditioning, ensuring operator comfort and safety during extended shifts.

Product Parameter

Boom Arm Extension Range: 6000mm-12000mm (Customized)

Structure Form of Slag Boom Arm: Single

Stretching Speed of Boom Arm: 0-1000mm/s (Adjustable within the range)

Boom Arm Tilt Angle: 0°-25° (Adjustable within the range)

Boom Arm Tilt Speed: 0-6°/s (Adjustable within the range)

Max Vertical Extension Range of Boom Arm: 750mm-1400mm (Customized)

Rotary Range of Upper Structure: 360°

Rotary Speed of Upper Structure: 0-12°/s (Adjustable within the range)

Maximum Grade Ability: 10%

Maximum Travel Speed: 5-10km/h (Programmable)

Tire: Solid Tire

Engine: OSB4.5-C130/1104D-E44TA (The pure electric power system of lithium iron phosphate is also available for option)

Full Load Grade Ability: >10%

Operating Weight: 18000kg

Engine Type: Diesel

Max Downward Thrust: Programmable

Maximum Horizontal Push/Pull Force: Programmable

Minimum Ground Clearance: 150mm

Max Speed of Elevating: 0-0.3m/s (Adjustable within the range)
