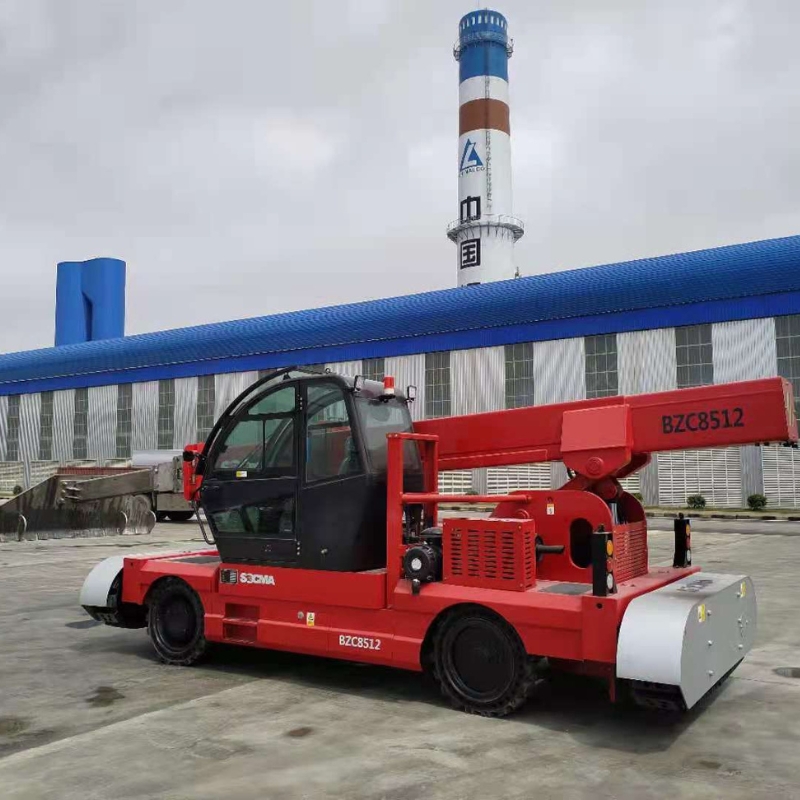

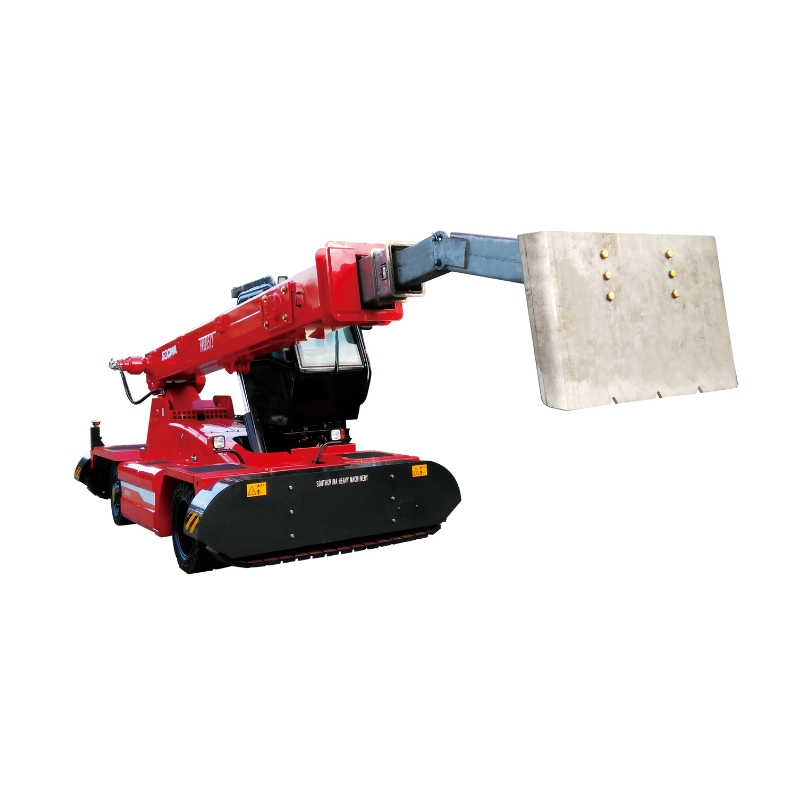

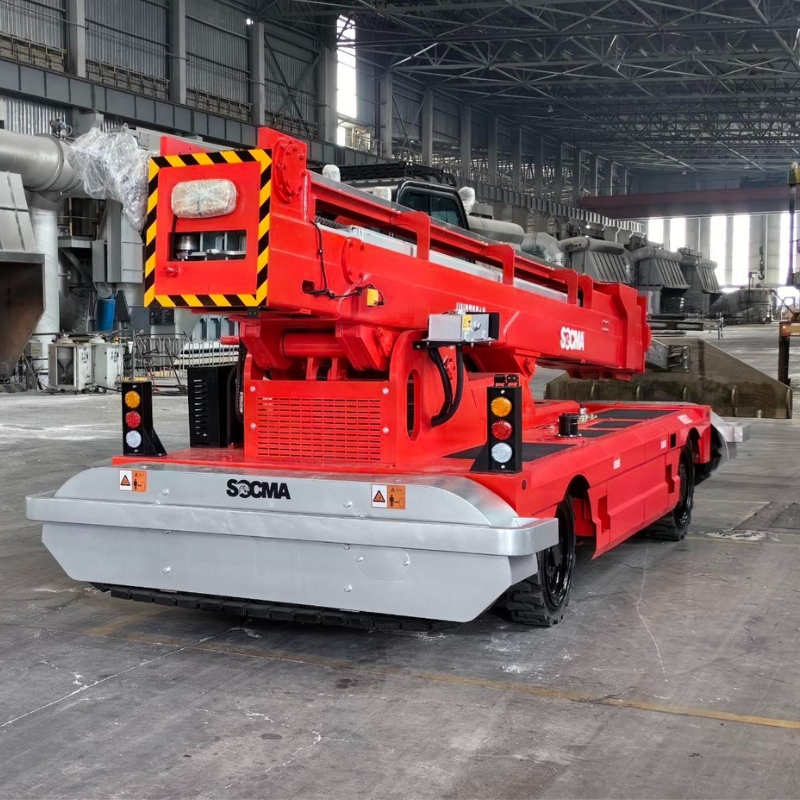

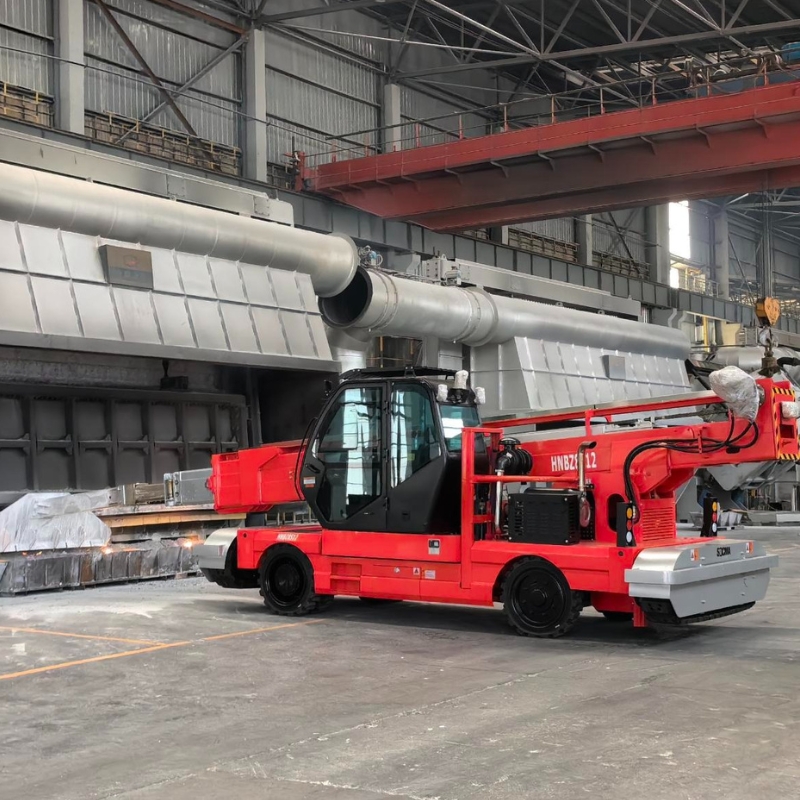

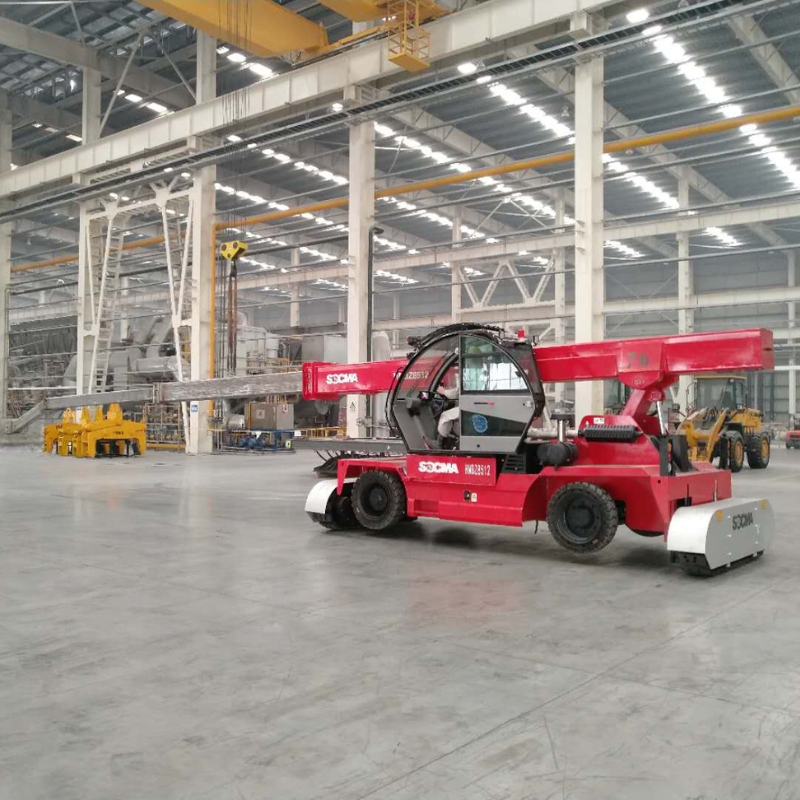

SOCMA HNBZ8512 Furnace-Tending Vehicle For Steel Mills and Foundries

Product Description

The SOCMA HNBZ8512 Furnace-Tending Vehicle is designed for tending furnaces in steel mills and foundries, featuring an 85 kW engine, a 0.85 m³ bucket capacity, and a 12-ton operating weight. It excels at handling molten materials and debris in high-heat environments.

Equipped with a four-wheel drive system and hydraulic transmission, the HNBZ8512 provides excellent traction and maneuverability in rugged, heat-intensive conditions. Its heat-resistant frame and hydraulic braking system enhance safety and durability during operation.

Powered by a DF Cummins engine, the HNBZ8512 delivers consistent performance with low emissions. The cab features heat-resistant materials, ergonomic controls, and a wide field of view, ensuring operator comfort and safety during extended shifts in harsh environments.

Product Parameter

Rated Power: 85 kW

Bucket Capacity: 0.85 m³

Operating Weight: 12000 kg

Overall Length: 6200 mm

Overall Width (The boom is fully retracted): 6000-8000 mm (Can be customized)

Width: 2450 mm

Overall Height: 2312 mm

Min Ground Clearance: 250 mm

Wheelbase: 2600 mm

Min Turning Radius: 4500 mm

Max Digging Height: 3500 mm

Max Digging Depth: 600 mm

Max Discharge Height: 1800 mm

Travel Speed (with Load/without Load): 15/20 km/h

Traction: 5000 N

Gradeability (with Load/without Load): 15/18 %

Driving Brake: Hydraulic clamp disc

Tire Specs - Front: 16/70-20PR

Tire Specs - Rear: 16/70-20PR

Tires Qty (Front/Rear - Drive Wheels): 4/4

Wheel Tread - Front: 1600 mm

Wheel Tread - Rear: 1600 mm

Engine Brand/Model: DongFeng Cummins QSB3.9-C110-31

Cylinder No.: 4

Transmission: Hydraulic

Transmission Gears (Front/Rear): 2/2

Hydraulic System Pressure: 18 bar

Hydraulic Oil Capacity: 200 l/min

Rated Power/Rotate Speed: 81 kW/2400 rpm

Max Torque/Rotate Speed: 330N·m/1400-1600 rpm

Truck Weight: 11000-12000 kg

Slag Removing Force (Level>90%): 10 kN

Slag Removing Force (Vertical>90%): 10 kN
